SNWC01

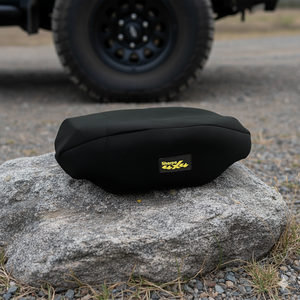

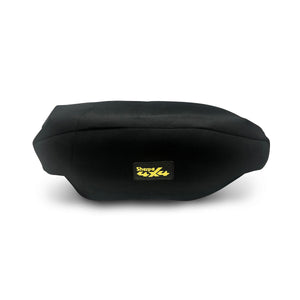

Neoprene winch cover that suits a range of Sherpa winches. Protects the winch and synthetic rope from the sun and other harsh elements of four wheel driving.
Winch Cover Specifications:
*The material has a natural stretch of up to 10% greater then the mentioned dimensions.
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type | Other | 92ft (28m) Cable | 92ft (28m) Rope | 100ft (30m) Rope | 100ft (30m) Cable | 148ft (45m) Cable | 148ft (45m) Rope |
ATV Winch 4,500Lb | 15lb (7 kg) | X | X | X | X | X | X |
9,500Lb | X | 57lb (26 kg) | 42lb (19 kg) | X | X | X | X |
10,000Lb (High Speed) | X | X | 50lb (23 kg) | X | X | X | X |
12,000Lb | X | 66lb (30 kg) | 50lb (23 kg) | X | X | X | X |
17,000Lb Single Motor | X | 60lb (30 kg) | 50lb (23 kg) | X | X | 88lb (40 kg) | 57lb (26 kg) |
17,000Lb Dual Motor | X | X | X | X | X | 101lb (46 kg) | 71lb (32 kg) |
Tow Truck Winch 20,000Lb | X | 100lb (45 kg) | 66lb (30 kg) | X | X | X | X |
25,000Lb | X | X | X | 68lb (31 kg) | 104lb (47 kg) | X | X |
Cable Data:
Winch Type | Cable Type | Length | Cable Size |
Grunter Boat Trailer Winches (All models) |
Positive (Power) |
7m (~23ft) | 50mm² |
Negative (Earth) |
3m (~10ft) | 32mm² | |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
Grunter Cable Upgrade (Postive cable only) |
Positive (Power) |
10m (~32ft) | 50mm² |
4x4 Winches (All models) Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models. |
Positive (Power) |
1.8m (~6ft) | 25mm² |
|
Negative (Earth) |
1.8m (~6ft) | 25mm² |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
4x4 Winch Cable Upgrade |
Positive (Power) |
3m (~10ft) | 25mm² |
Negative (Earth) |
3m (~10ft) | 25mm² | |
Big Air - Air Compressors (All models) |
Positive (Power) |
3m (~10ft) | 16mm² |
Negative (Earth) |
3m (~10ft) | 16mm² |
