SWSS1200S
These winches are made from high grade 304 stainless steel and make the manual winching process a breeze. Available in a range of sizes and capacities there's a solution for your winching needs.
Sherpa winches have a focus on quality and invest in continuous improvement, making them the best winch solution on the market. The range of hand winches are no exception and deliver high quality as well as value for money.

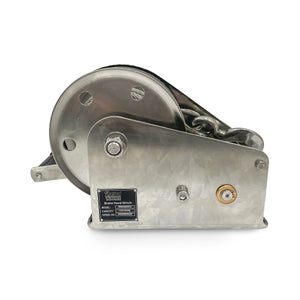

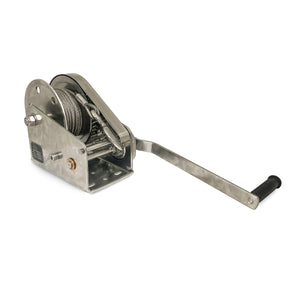

These braked hand winches are the ideal choice around salt water marine environments and have specific target applications. Whilst they can be used for a upgrade for your rusty boat trailer winch, users should note there's no disengage option and the winch brake will apply instantly when you cease turning the handle. There's no noisy ratchet clicker on these winches and they deliver smooth performance. These winches are ideal for use as a davit winch or for raising and lowering loads. The braked design makes them incredibly safe as the load won't run away from you as it's lowered. The winch will stop immediately when the handle is released thanks to the special braked design. Available in a range of sizes and ratings to suit different applications.
Tried and Tested - Sherpa don't just base their winch designs on the theoretical calculations. Winches are also tested to destruction on a test bench before undergoing real world testing. What results is a robust winch design with exceptional in-house pre and post sales support.
Tough & Durable - Sherpa winches are built to last.
Quality gears - Sherpa gears turn smoother and feel better thanks to the high level of engineering design and quality control during manufacturing.
Powerful- A range of solutions are available for different applications and loads.
Simplicity - Easy to set up and operate, these winches have been designed with simplicity in mind. They are supplied ready to operate out of the box.
Warranty and Parts - Sherpa offers a 5 Year warranty on their hand winch range.
Specifications | SWSS1200S | SWSS2600S |
---|---|---|
Pulling capacity on 1st layer | 1,200 lb (545 kg) | 2,600 lb (1,200 kg) |
Lifting capacity on 1st layer | 594 lb (270 kg) | 1,320 lb (600 kg) |
Gear Ratio | 4:1 | 10:1 |
Cable |
5m of 5mm stainless steel with hook |
5m of 8mm stainless steel with hook |
Brake |
Automatic load pressure brake makes for safe holding and lowering of load | Automatic load pressure brake makes for safe holding and lowering of load |
Material |
Winch body made from A304 Stainless Steel | Winch body made from A304 Stainless Steel |
Weight | ~4 kg |
~12kg |
Warranty | 5 Years | 5 Years |
Specifications | SWSS1200S | SWSS2600S |
---|---|---|
Pulling capacity on 1st layer | 1,200 lb (545 kg) | 2,600 lb (1,200 kg) |
Lifting capacity on 1st layer | 594 lb (270 kg) | 1,320 lb (600 kg) |
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type | Other | 92ft (28m) Cable | 92ft (28m) Rope | 100ft (30m) Rope | 100ft (30m) Cable | 148ft (45m) Cable | 148ft (45m) Rope |
ATV Winch 4,500Lb | 15lb (7 kg) | X | X | X | X | X | X |
9,500Lb | X | 57lb (26 kg) | 42lb (19 kg) | X | X | X | X |
10,000Lb (High Speed) | X | X | 50lb (23 kg) | X | X | X | X |
12,000Lb | X | 66lb (30 kg) | 50lb (23 kg) | X | X | X | X |
17,000Lb Single Motor | X | 60lb (30 kg) | 50lb (23 kg) | X | X | 88lb (40 kg) | 57lb (26 kg) |
17,000Lb Dual Motor | X | X | X | X | X | 101lb (46 kg) | 71lb (32 kg) |
Tow Truck Winch 20,000Lb | X | 100lb (45 kg) | 66lb (30 kg) | X | X | X | X |
25,000Lb | X | X | X | 68lb (31 kg) | 104lb (47 kg) | X | X |
Cable Data:
Winch Type | Cable Type | Length | Cable Size |
Grunter Boat Trailer Winches (All models) |
Positive (Power) |
7m (~23ft) | 50mm² |
Negative (Earth) |
3m (~10ft) | 32mm² | |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
Grunter Cable Upgrade (Postive cable only) |
Positive (Power) |
10m (~32ft) | 50mm² |
4x4 Winches (All models) Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models. |
Positive (Power) |
1.8m (~6ft) | 25mm² |
|
Negative (Earth) |
1.8m (~6ft) | 25mm² |
Control Box Cables |
Various <1m (< ~3ft) From winch to control box only. | 25mm² | |
4x4 Winch Cable Upgrade |
Positive (Power) |
3m (~10ft) | 25mm² |
Negative (Earth) |
3m (~10ft) | 25mm² | |
Big Air - Air Compressors (All models) |
Positive (Power) |
3m (~10ft) | 16mm² |
Negative (Earth) |
3m (~10ft) | 16mm² |
