Universal Winch Mounting Plate
SUWMPRB
$239.00 - $259.00$255.00 - $275.00
Heavy duty, winch mounting plate. Used to install a winch where a winch compatible bull bar is not installed.
- Rated to 19,000lbs.
- Customisation required.
- CAD drawings available.
-
See the drawings below for dimensions of the Regular and Large Base versions. Use the Regular Base with Sherpa 28m rope or cable winches. For our 30m and 45m range of winches the Large Base will be required.
CAD Drawing: SUWMPRB - Sherpa Winch Mounting Plate (Regular Base)
CAD Drawing: SUWMPLB - Sherpa Winch Mounting Plate (Large Base)
PLEASE READ: We cannot advise if the winch plate will suit your vehicle or bar. These require customisation to fit. See the drawings for dimensions and take measurements of your vehicle to determine suitability.

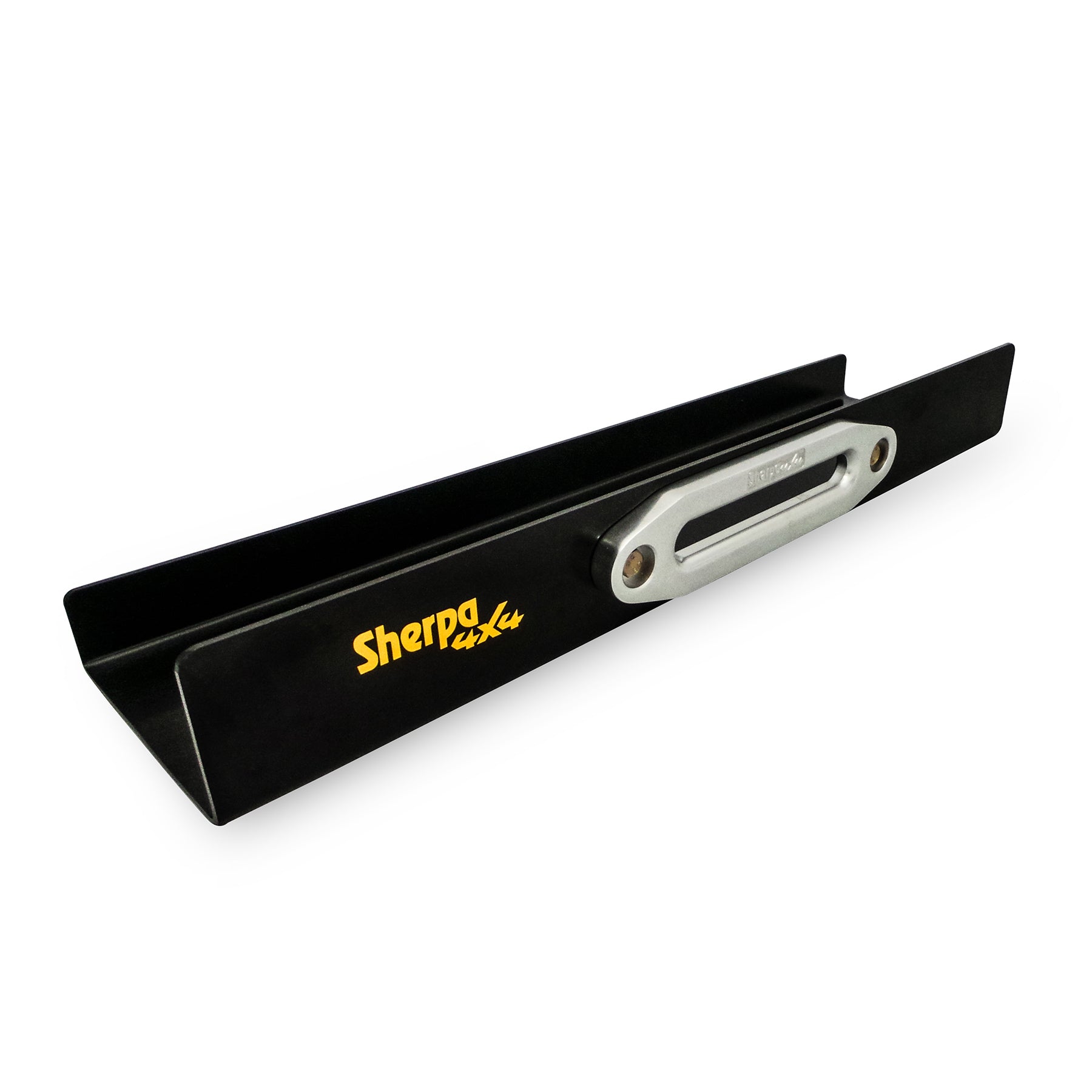

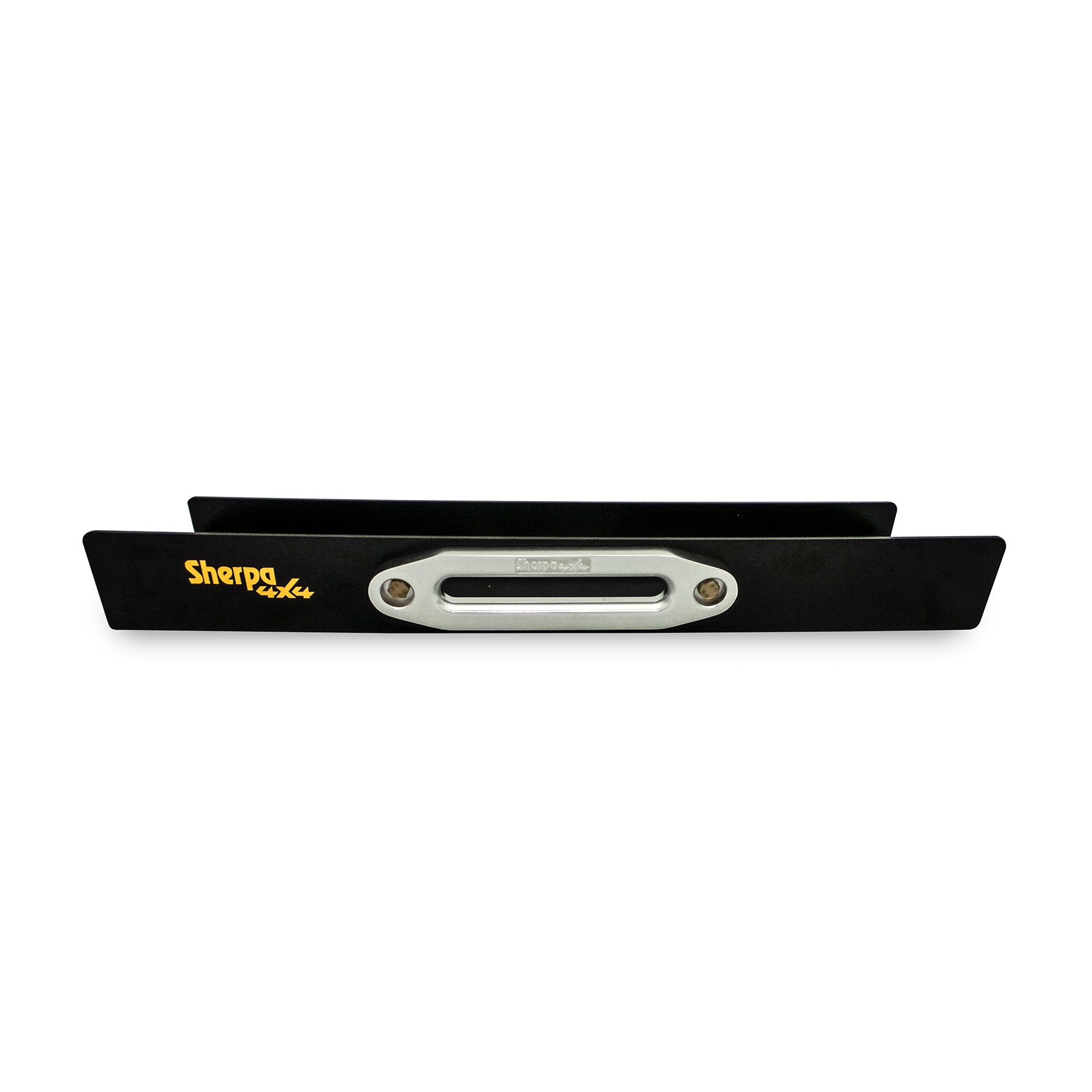

Supplied as the winch bracket only. Winch roller fairlead and hawse are shown in the pictures for demonstration purposes.
- Universal winch bracket makes fitting winches possible on vehicles without bullbars or without winch bars.
- Heavy duty construction to withstand the load of winches up to 19,000Lbs.
- Includes cut out and standard mounting holes for aluminium hawses or roller fairleads.
- Available with the option of regular base or large sized base.
- Ideal for rear mounted winches.
- Also used on trucks, trailers, campers, custom built vehicles.
- Long lasting black powder coat.
- 4.5mm steel thickness.
- 12 Month Warranty.
-
CAD Drawing: SUWMPRB - Sherpa Winch Mounting Plate (Regular Base)
CAD Drawing: SUWMPLB - Sherpa Winch Mounting Plate (Large Base)
Weight:Regular Base - 8kgLarge Base - 9kgExample of a customer's install:
This customer has installed a Sherpa Stallion 25,000lb winch with a Large Base mounting plate. The plate has been trimmed to suit and bolted between the chassis rails. A hawse or fairlead is then to be fitted and the bumper replaced. -
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X
Cable Data:Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
