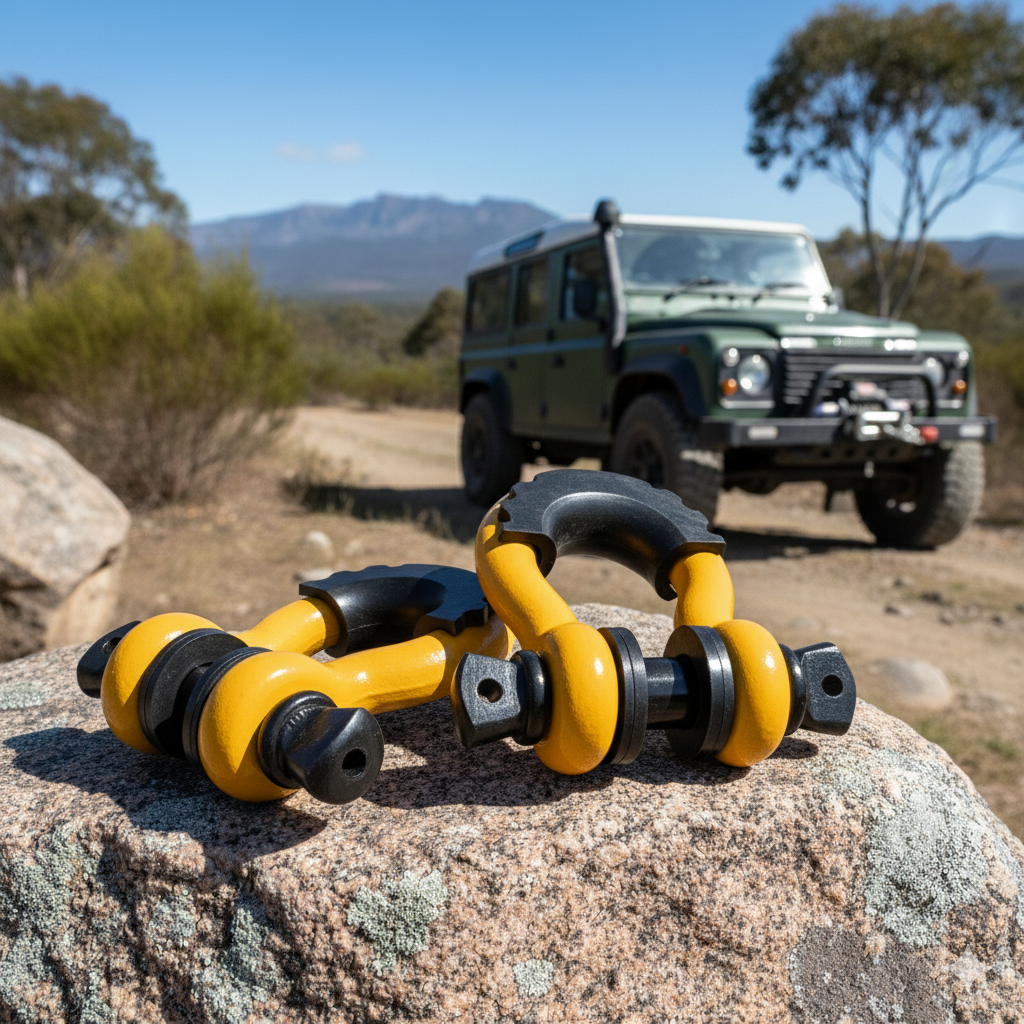

Sherpa Recovery Shackle (2pce set)
SBS34
$49.00$65.00
Sherpa recovery bow shackles are ideal for 4x4 off-road recovery use and are the perfect addition to your recovery kit.
-
These bow shackles are ideal for use with the Sherpa recovery hitch. They're supplied with rubber washers and guarding to stop vibration, rattles and paint chips.
- Rated at WLL 4,750 kg with a breaking load of 28,500 kg
- Fits Sherpa receiver hitch plus many other brands
- 22mm pin is extremely strong
- Includes rubber washers and guard to stop rattles and paint chips
- Bow shackle design makes it easy to attached large straps
- Sold as a 2pce set
-
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X
Cable Data:Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
